Cladrite System Two

Bonded Composite Panel



Cladrite System Two is a fully bonded composite panel for use on both roof and side cladding. This durable and easy to fix system is ideal for commercial and industrial buildings.

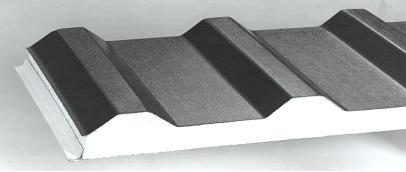

The panels consist of a 26/1000 box profile exterior skin, a bright white flat panel internal skin. Both of these are bonded to an EPS insulation core. The system is produced in various thicknesses of insulation to allow for different U Value requirements.

Cladrite System Two can be manufactured in lengths up to 7.50 metres (25'7"); the sheets have a cover width of 1000mm (3'3"). The exterior skin can be produced in our full range of colours and coatings.



Both internal and external skins are produced from Hot-Dipped Galvanized steel, if required the system can also be manufactured in Aluminium.

The inner and outer facings of Cladrite System Two have a Class 1 Surface Spread of Flame to B.S.476 part 7.1987 and are Class O as defined by the Building Regulations. The panels are rated FAA/SAA to B.S.476 part 3.



Cut Backs

Cut Backs are required at sheet joints and at the eaves where only the external shin would normally run into the guttering. A cut back is where the insulation core and the internal lining end before the external skin. This allows for sheet joints. Cut Backs can be either Right to left (BF) or Left to Right (FF)



Side Laps

The side lapping detail for Cladrite System Two is similar to that of single skin box profile. As with single skin, it is recommended that a 9*3 seala tape should be used along the lapping edge. The edge should also be stitched at 300mm centres.



Roof Lights

The standard roof lights for Cladrite System Two are a site-assembled construction consisting of the following

The following diagram shows the construction of the Roof Light



Insulation Material

The core insulation for the standard Cladrite System Two is an EPS. This EPS has a number of insulation qualities

Installation

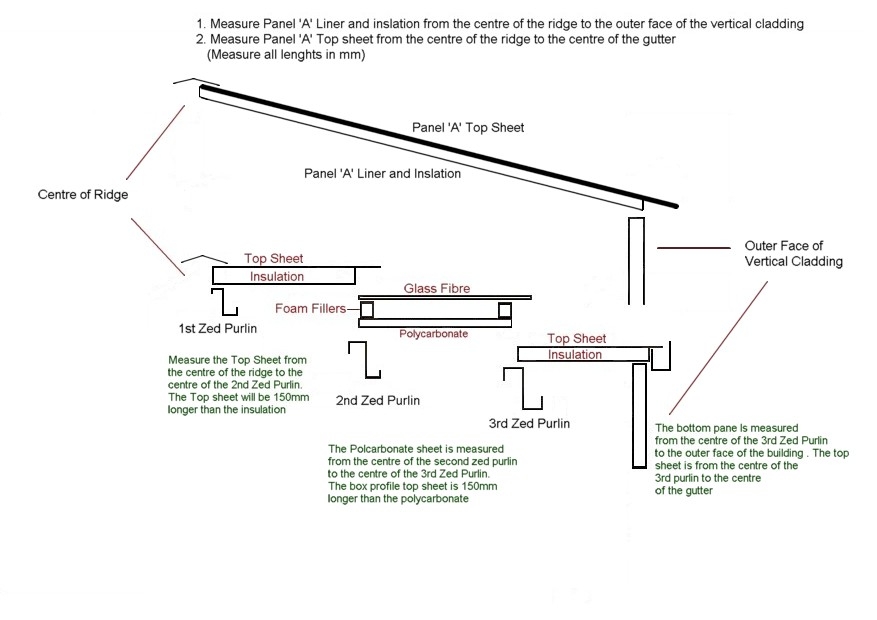

One of the main benefits of Cladrite System Two is that it is easy to fix. The drawing below shows how to fix the sheets

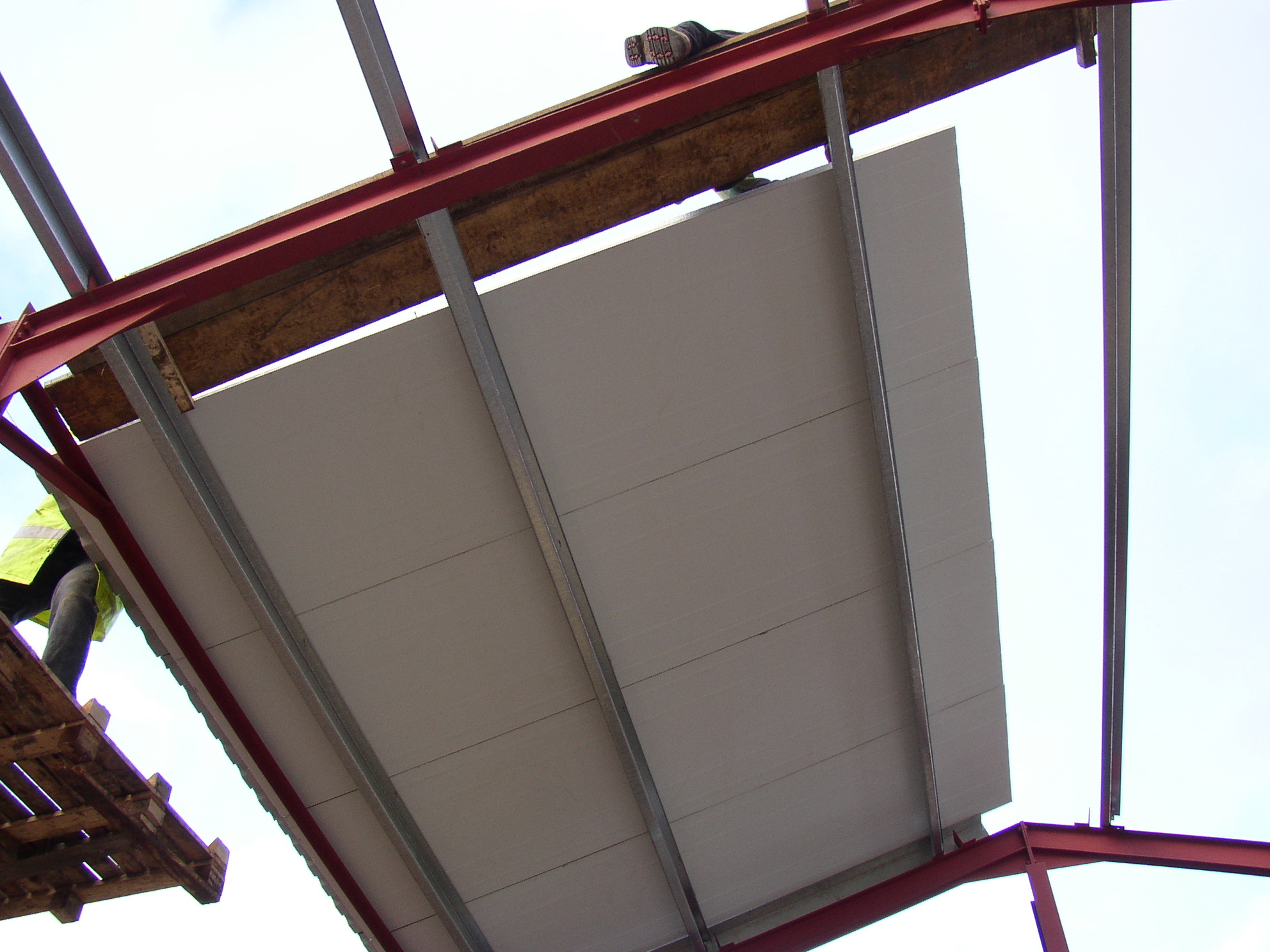

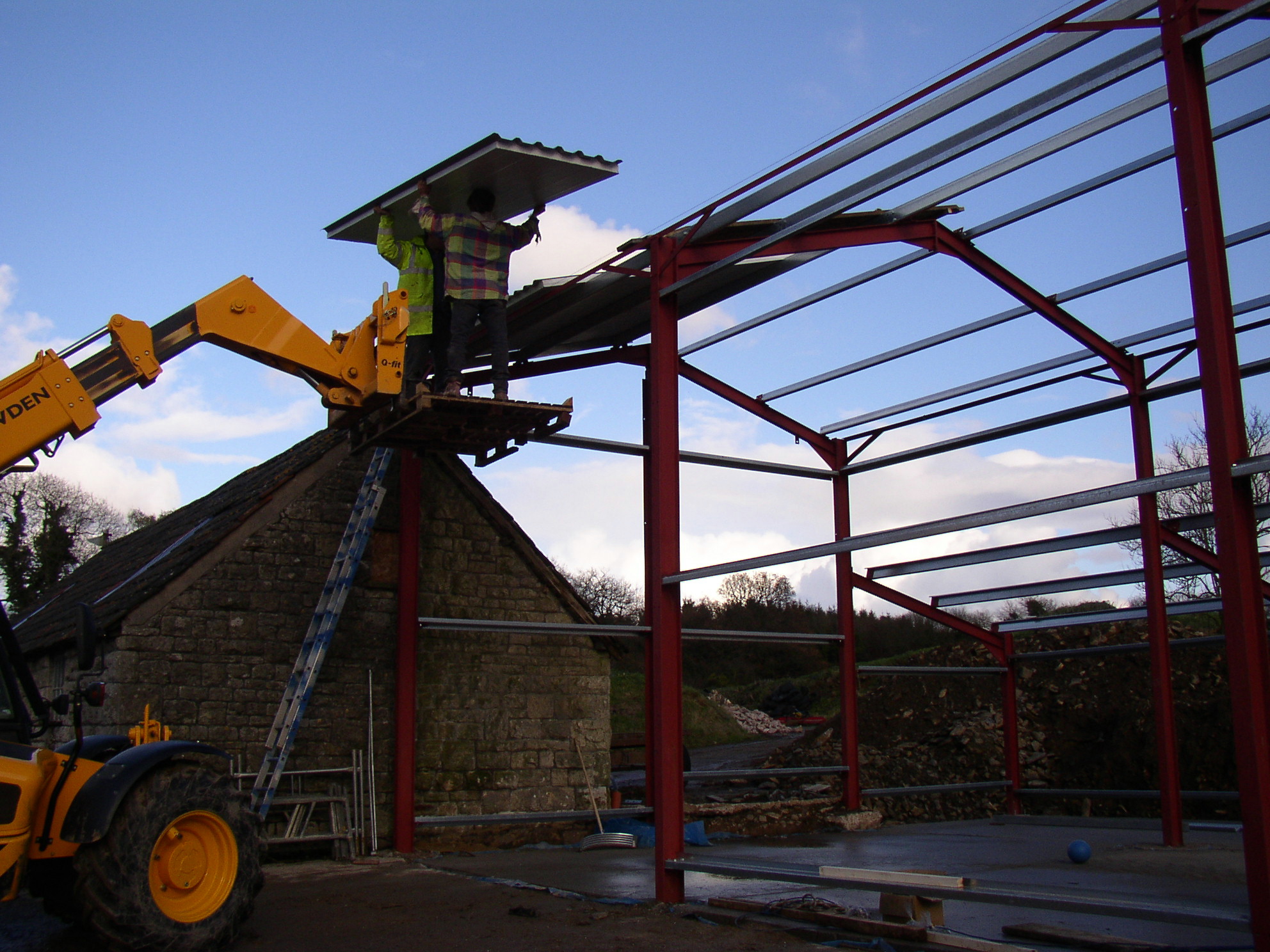

The pictures below show in detail how easy it is to fix Cladrite System Two





If you Have any queries , please do not hesitate to contact a member of our sales team on 00 44 (0)1685 843344
